ACCESORII



Dispozitiv de depozitare si rulare  H780-T

Dispozitiv de depozitare si rulare  H780-T

Domeniul de lucru:

• Furtunuri cu diametru interio de pana la  DN 32 (11/4”)
• Rola/raft contine un dispozitiv reglabil pentru fixarea colacilor de furtun de la 200 to 450 mm,
• Capacitate de depozitare pentru fiecare rola/raft - Max. 120 Kg



Date tehnice:

• Dimensiuni in mm:

• Lungime 1200,

• Latime 1260,

• Inaltime 2200,

• Greutate: 100 Kg, fara rafturi


Technical changes are reserved at any time






Masina de sertizat furtunuri de climatizare -AC KP 810



Masina de sertizat furtunuri de climatizare

Domeniul de lucru:

• Furtunuri pentru climatizare de la DI 14mm pina la DI 25,5mm
• Deasemenea si puntru armaturile cu coturi de 45° si 90°



Avantaje speciale:

•  Capul de presa este patentat
•  Unitate foarte compacta, ideala si pentru ateliere mobile
•  Modul de utilizare foarte simplu, actionare pneumohidraulica
•  Constructie foarte robusta din aliaj de aluminiu cu titan
•  Echipare standard: 6 seturi de bacuri ind box cu accesorii
•  Necesaru de alimentare cu aer comprimat;. Min 7 bari; actionarea ventilului manuala



Date tehnice:

  • Dimensiuni mm: 330 x 160 x 425
  • Greutate:  14 Kg.

Technical changes are reserved at any time






Presa manuala pentru furtunuri de climatizare -AC MPT100325E-TNT-8



Domeniul de lucru:

• Furtunuri pentru climatizare de la DI 14mm pina la DI 25,5mm
• Deasemenea si puntru armaturile cu coturi de 45° si 90°

Technical changes are reserved at any time

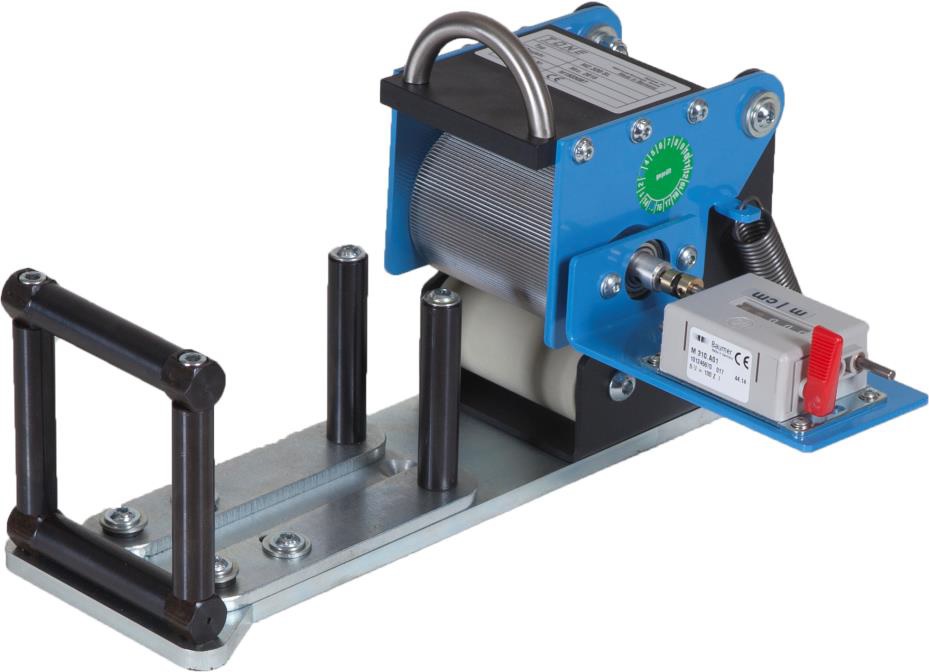

Dispozitiv de masurare furtunuri MZ.320-SL / MZ.125-SL  descarca PDF



MZ.320-SL / MZ.125-SL

Avantajele speciale:


•  Compactă și rezistenta
•  Ușor de reglat
•  Întreținere redusă, doar curățare
•  Resetare manuală
•  Disponibil și pentru furtunuri de până la 70 mm.



Domeniul de lucru:

• Miin Ø 6 mm - max. Ø 70 mm (MZ.320-SL)min Ø 15 mm - max. Ø 125 mm (MZ.125-SL)
• Toleranta: ± 2%
• Viteza de tragere: max. 60.0 m / min

Date tehnice:
Dimensiuni in mm:  300 x 210 x 140
Greutate:  5.5 Kg


Technical changes are reserved at any time






Dispozitiv pentru introducerea armaturilor NEM 50 descarca PDF



Dispozitiv pentru introducerea armaturilor NEM 50


Domeniul de lucru:

• Toata gama de furtunuri si armaturi hidraulice de la  DN 06 (1/4”) pana la  DN 50 (2”)
• Armaturi drepte, la 45° si 90°
• Configuratie standard, usor de folosit

Technical changes are reserved at any time






Dispozitiv de perforat furtunuri PR- 145.3 -185.3 descarca PDF



PR- 145.3 -185.3

Special advantages:

•  Compact design
•  Easy to use
•  Robust and precise
•  Also usable for thermoplastic hoses
•  Tolerances in OD are covered by a spring



Domeniul de lucru:

• All rubber and thermoplastic hoses, which are used in Gas applications
• min ∅11,5 – max ∅50 (PR-145.3)
• min ∅11,5 – max ∅85 (PR-185.3)



Technical data:
Dimensions in mm: width 195, depth 275, height 180
Weight: 10 KG



Technical changes are reserved at any time








Hose pin prick tool PR-M2




Operating Range:

• All hydraulic hoses, which are used in Gas applications
• min ∅11,5

Technical changes are reserved at any time








Hose coiling unit SAR 110-Vario descarca PDF



SAR 110-Vario


Special Advantages:
 Compact and mobile hose coiling unit
 One person operation possible
 Coiling plate is tilting adjustable from 0° to 90°
 Hose guides infinitely adjustable (200 - 500 mm)
 Fast clamping system on the hose coiler
 Foot switch with speed control, for precise coiling
 Brake wheels, for stabile working


Range of application:
 Hoses up to DN 50 (2”)*
 Max. OD of coil diameter: 1000mm
 Max. load capacity 150 KG
* According to the hose type


Technical data:
Dimensions in mm: width 1200, depth 1200, height 900
Electric supply: 230V, 50Hz, 1Ph, 0.37kw
Coiling speed: from 0 to max. 36 rpm
Weight: 70 KG


Technical changes are reserved at any time

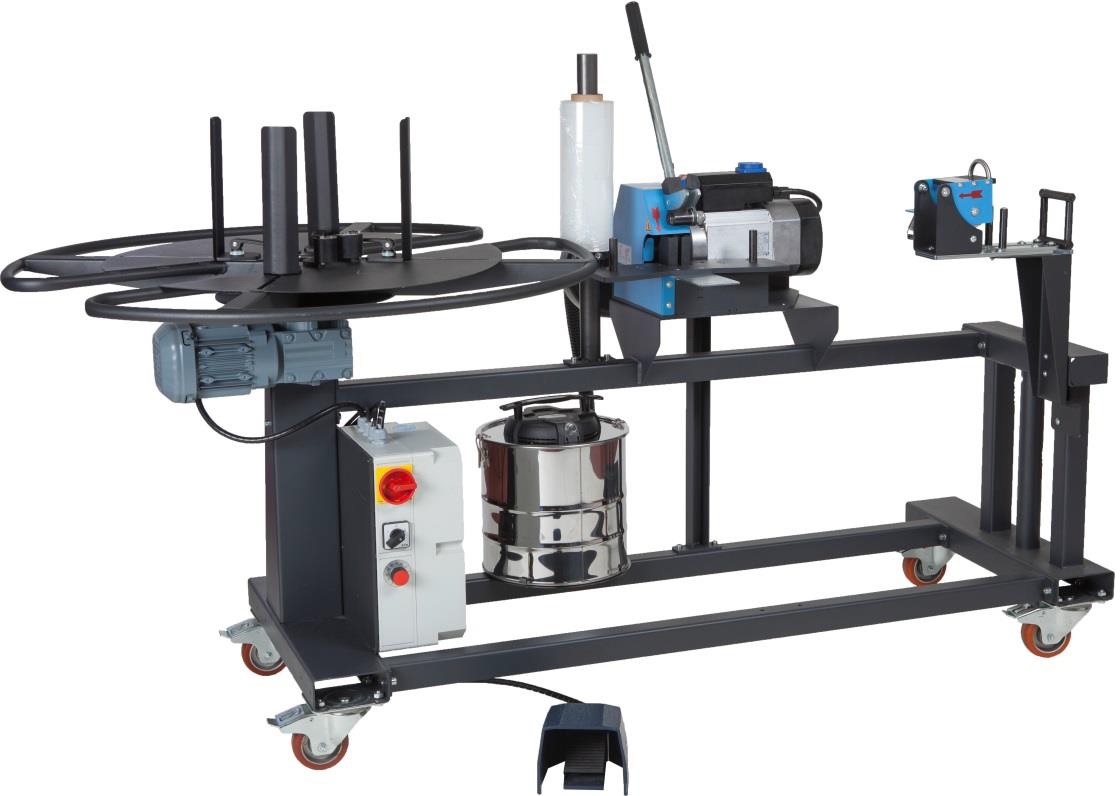

Coiling, measuring and cutting unit SAR 800-Vario descarca PDF



SAR 800-Vario

Special advantages:
 Compact hose coiling, measuring and cutting unit
 One person operation possible
 Foot switch with speed control, for precise coiling
 Fast clamping system on the hose coiler
 Flexible possibilities for uncoiling
 Length tolerance: +/- 2%
 Brake wheels, for stabile working
 Cutting machine SM 210-SL included
 Incl. spark arrester and suction unit
 Optional foil dispenser
 Tilting models available


Range of application:
 Hose DN 06 (1/4”) up to DN 20 (3/4”)
 Hose coil diameter max. 1000mm
 Max. load capacity 120 KG / hose roll


Technical data:
Dimensions in mm: width 2500, depth 800, height 1400
Electric supply: 230V, 50Hz, 1Ph, 0.37kw
Speed: from 0 to max. 36 rpm
Weight: 115 KG


Technical changes are reserved at any time




Uncoiler for hose reels SHA 600 descarca PDF



SHA 600

Operating Range:

• Maximum load capacity 150kg.
• Hose reel width Max. 560 mm
• Hose reel diameter 250 mm min. Up to 1200 mm (for 1200 mm reels, you will need 2
uncoil units)
• Roller diameter 80mm

Technical changes are reserved at any time








Hose shelf SHR 200 descarca PDF



SHR 200

Working range:


• Max. 25 KG each holder
• Max. capacity 250 KG

















Technical changes are reserved at any time








Hose uncoiler SHS-350 descarca PDF




SHS-350

Working range:

• Hoses up to DN50 (2”)*
• Max. capacity 350 KG

* According to the hose type










Technical changes are reserved at any time

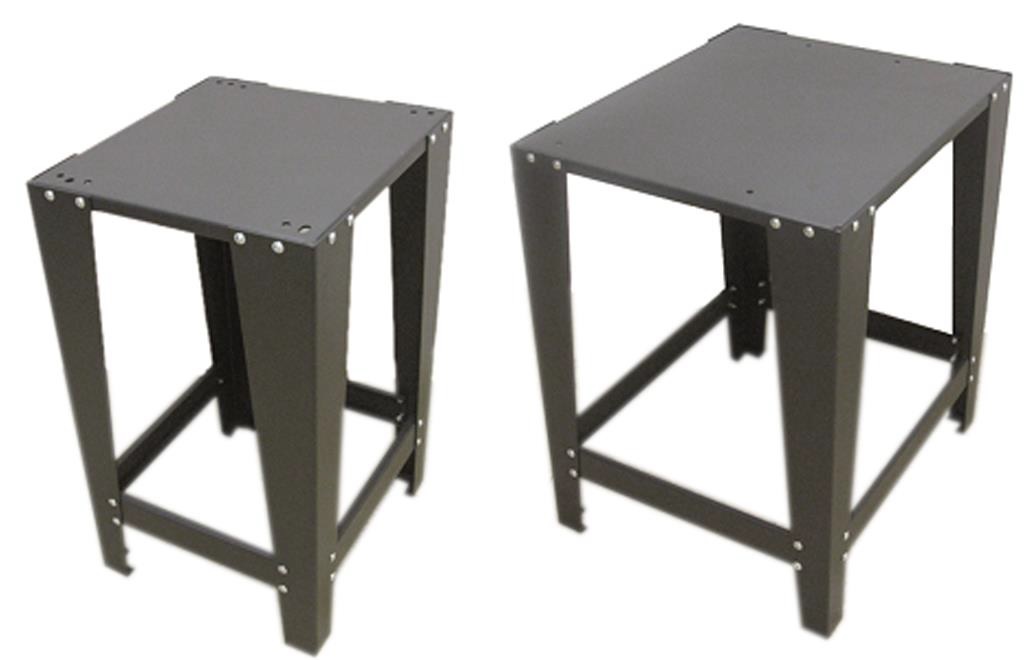

Table for cutting machines: UBT 210-275 / 350-400 descarca PDF



UBT 210-275 / 350-400

Special advantages:
 Very stable undertable, for cutting machines
 Due to the bolted design, the complete table can be shipped in single parts (low cost
transportation)
 Easy assembling




Range of application:
 UBT 210-275 for TONE cutting machines SM210-SL or SM275-SL
 UBT 350-400 for TONE cutting machines SM350-SL or SM400-SL


Technical data:
Capacity: 160 kg
Dimensions in mm:
UBT 210-275 width 420, depth 380, height 685
UBT 350-400 width 500, depth 600, height 685
Weight UBT 210-275: 13 kg
Weight UBT 350-400: 16 kg



Technical changes are reserved at any time
