Cuple aer



Cuple de alama pentru aer

Descarca pagina de catalog .pdf


 DESCRIERE:


• Material: Brass
• Springs, locking pins made of rust-proof steel material no.: 1.4034
• Operating pressure (bar): 0-35 bar and rough vacuum
• Temperature range (°C): to +100 °C
• Shut-off on one side






1 82 000 32 Muffa cupla rapida IG 1/4
2 82 000 33 Muffa cupla rapida IG 3/8
3 82 000 34 Muffa cupla rapida IG 1/2
Detailbild

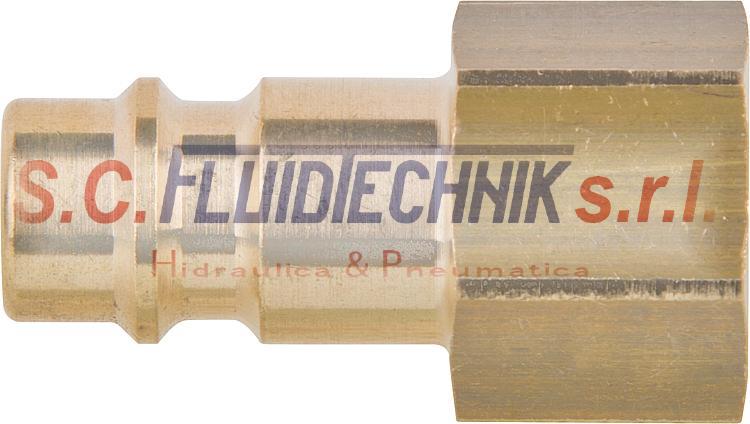

4 82 000 62 Stecher cupla rapida IG 1/4
5 82 000 63 Stecher cupla rapida IG 3/8
6 82 000 64 Stecher cupla rapida IG 1/2

Detailbild





7 82 000 38 Muffa cupla rapida stut 6mm
8 82 000 39 Muffa cupla rapida stut 8mm
9 82 000 41 Muffa cupla rapida stut 10mm
10 82 000 42 Muffa cupla rapida stut 12mm
Detailbild

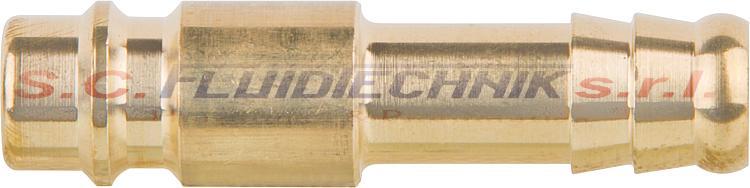

11 82 000 44 Stecher cupla rapida stut 6mm
12 82 000 45 Stecher cupla rapida stut 8mm
13 82 000 47 Stecher cupla rapida stut 10mm
14 82 000 48 Stecher cupla rapida stut 12mm
Detailbild

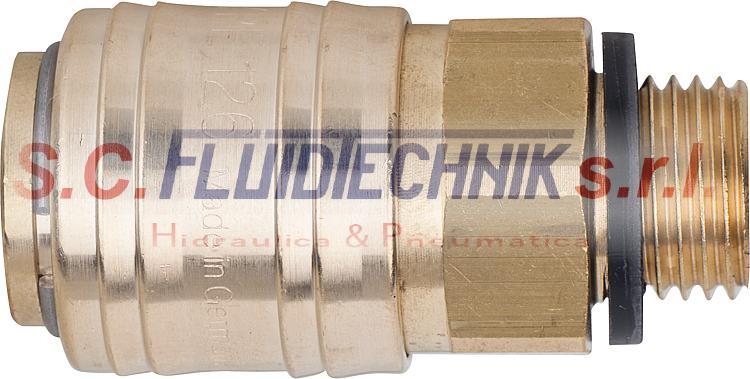

15 82 000 25 Muffa cupla rapida IG 1/4
16 82 000 26 Muffa cupla rapida IG 3/8
17 82 000 27 Muffa cupla rapida IG 1/2
Detailbild

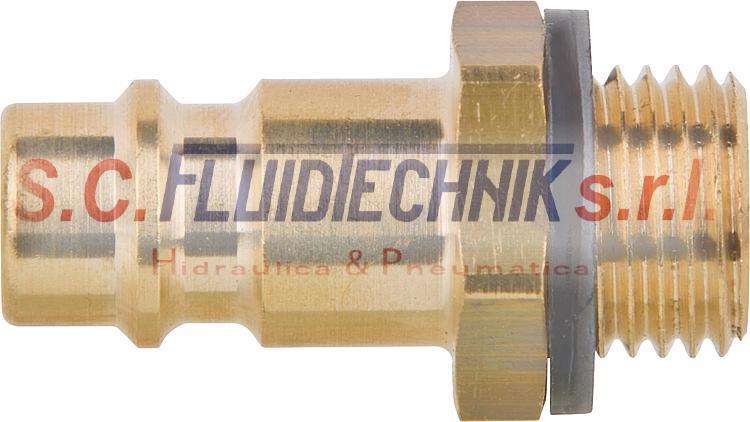

18 82 000 58 Stecher cupla rapida IG 1/4
19 82 000 59 Stecher cupla rapida IG 3/8
20 82 000 60 Stecher cupla rapida IG 1/2
Detailbild










21 82 001 91 Pistol AER
Detailbild






















 Conectica pentru compresoare sau furtunuri de sapa

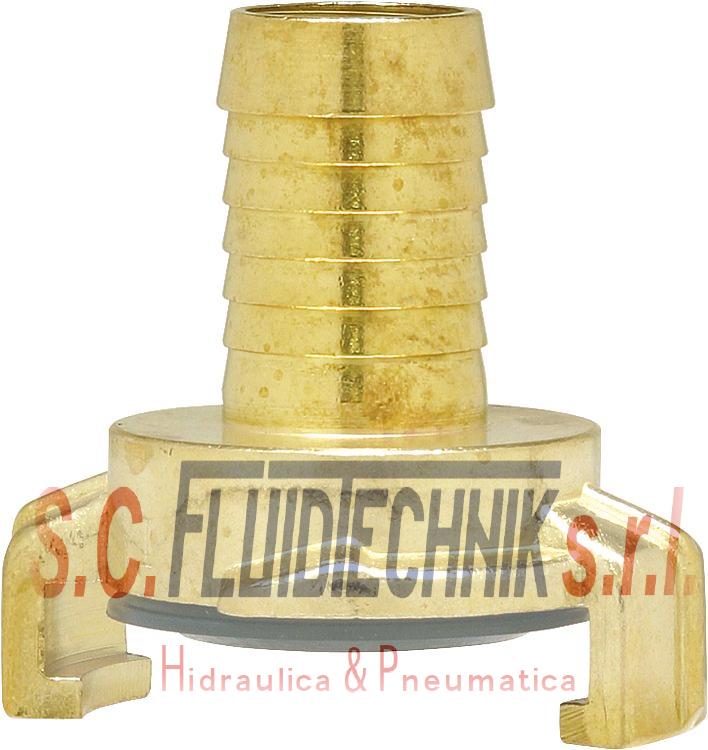

Half turn coupling one piece 1" Brass
Order no.: 92 068 08 Detailbild

• Brass CW 617N in accordance with TVO (DIN 50930-6)
• Standard design: NBR black seal
• Drinking water design: NBR red seal with KTW/W-270 approval, DVGW-tested (German Gas and Water Board)

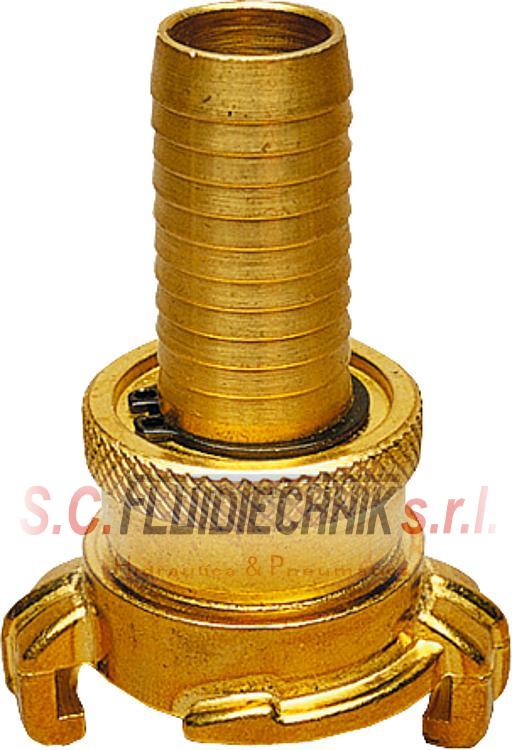

Brass 1" screw coupling Draw and pressure coupling

Order no.: 92 008 00 Detailbild









• Brass CW 617N in accordance with TVO (DIN 50930-6)

• Standard design: NBR black seal


• Drinking water design: NBR red seal with KTW/W-270 approval, DVGW-tested (German Gas and Water Board)

• With seal (suction and high-pressure coupling)








geka filet interior 3/4" si 1"


Geka plus screw piece female 3/4", brass

Order no.: 92 068 39

Geka plus screw piece female 1", brass

Order no.: 92 068 40

DESCRIPTION

• Claw spacing consistently 40 mm. Can be combined with each other and with all other GEKA models.
• Locking nubs provide optimum safety and prevent coupling halves from becoming loose even in a coupled and depressurised state.
• Brass CW617 N, DIN 17660 and 50930/6
• Operating pressure > 40 bar
• Burst pressure > 80 bar
• Standard with NBR gasket
• Drinking water design: NBR seal, red, with KTW/W-270 approval, DVGW-tested (German Gas and Water Board)
• Internal thread

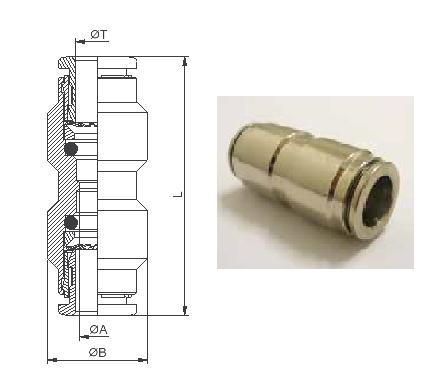

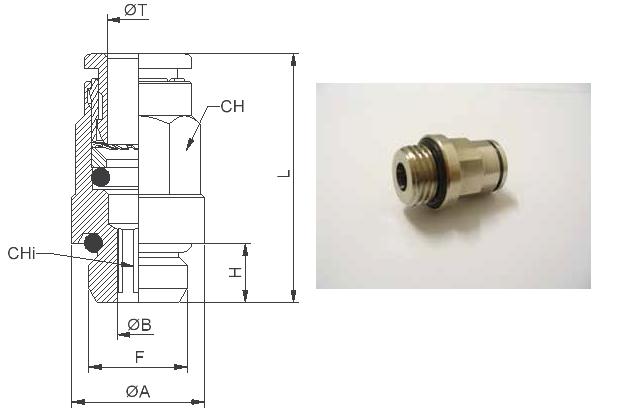

 Conectica pentru tuburi pneumatice
